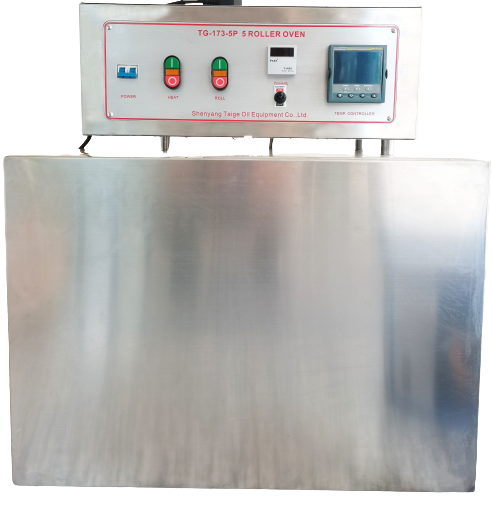

Roller Aging Furnace for Aging Cells Typical applications
1. Study the Cations Exchange reaction in the newly prepared drilling fluids
2. Test the drilling fluids additive stability (such as thinners and organic glue)
3. Can be used as drying oven
4. Can be used as aging oven
5. Can be used as simple mixer for chemical solution or to mix liquids or solids Nominal
Capacity 4x 500 ml
Cells Motor power: 370W
Inverter power:400W
Operating temperature range: 50℃-300℃
Digital PID Controller with Eurotherm Programmable Temp-time profiles
Control accuracy:±3℃
Rotating Speed of aging cell:50rpm
Control of Speed with VFD
Sample flow rate in kettle: 0.16 m/s
